Electric Hoist HOIST12 for 12m

Name: Electric Hoist HOIST12 for 12m
Brand: Pallit
SKU: 50000086-0
Price: 79.73 EUR
Availability: OutOfStock

Outlet Sold out

109,00 €

80,40 € VAT included 67,00 €

SKU 50000086-0

This electric cable hoist is suited for lifting loads, whether in the workshop, in the house or in the garden. It doesnt matter whether you want to lift building materials or car body parts, the electric cable winch is multifunctional and can be used in many ways. The weight of the unit is a light 10 kg. The assembly is quick and uncomplicated via the supplied mounting brackets. The powerful motor with 500 W power is equipped with overheating protection to prevent damage to the motor. The safety cut-out on the device ensures a shutdown as soon as the rope has been completely retracted. In order to operate the winch, it is equipped with a remote control, which is attached to the unit with a cable. There is also an emergency stop switch to stop the unit immediately in dangerous situations. The hoist lifts loads at a speed of 8 m/min (single hook) or 4,0 m/min (double hook). The winch is controlled via a remote control with a cable length of 1,6 m.

Load capacity (single/double hook): from 125/250 kg up to 500/1000 kg
Height (single/double hook): 12 m / 6 m
Lifting speed (single/double hook): 8 m/min 4,0 m/min
Rated voltage: 230 V
Protection class: IP54
Steel rope diameter: 3 mm

Technical data

General

Capacity

300/600 kg

Capacity, double cable

600 kg

Capacity, single cable

300 kg

Weight

17.5 kg

Sound level EN-12053

85 dB

Material

steel

Colour

Blue

Cable length

12 m

Wire cable diameter

4 mm

Power rating

S3-20%-10 | S3-25%-10

ISO classification

M1

EN standard

EN14492-2

Seal

CE

IP protection type

IP54

Insulation class

B

Control cable length

1.6 m

Power cable length

0.45 m

Rated current

4.6 A

Thermal overload protection

yes

Cable strength

1770 mm

Thread size

M10

SKU

50000086-0

Brand

Pallit

Lift

Lift height

12000 mm

Lift motor power

1.05 kW

Lifting height, single cable

12 m

Lifting height, double cable

6 m

Lifting speed, single cable

8 m/min

Lifting speed, double cable

4 m/min

Battery

Voltage

230 V

Delivery

Parcel service

Delivered as

parcel

Links

Safety instructions

Product manual

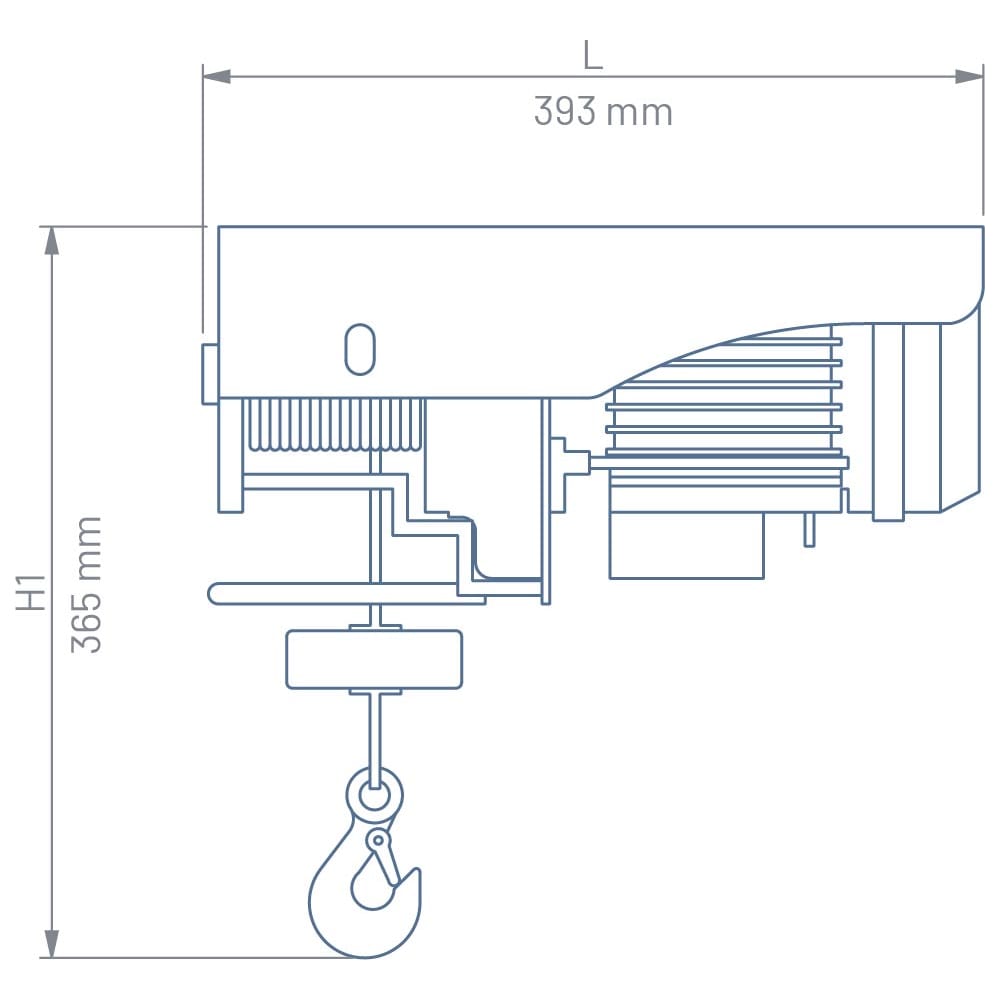

Dimensions

Lift height

12000 mm

h3
Height

350 mm

h14/h4
Minimum distance to mounting

365 mm

H1/H
Mounting bracket, dimensions

46 x 52 mm

Distance between blind holes, lengthwise

190 mm

A1
Distance between blind holes, crosswise

100 mm

A2
