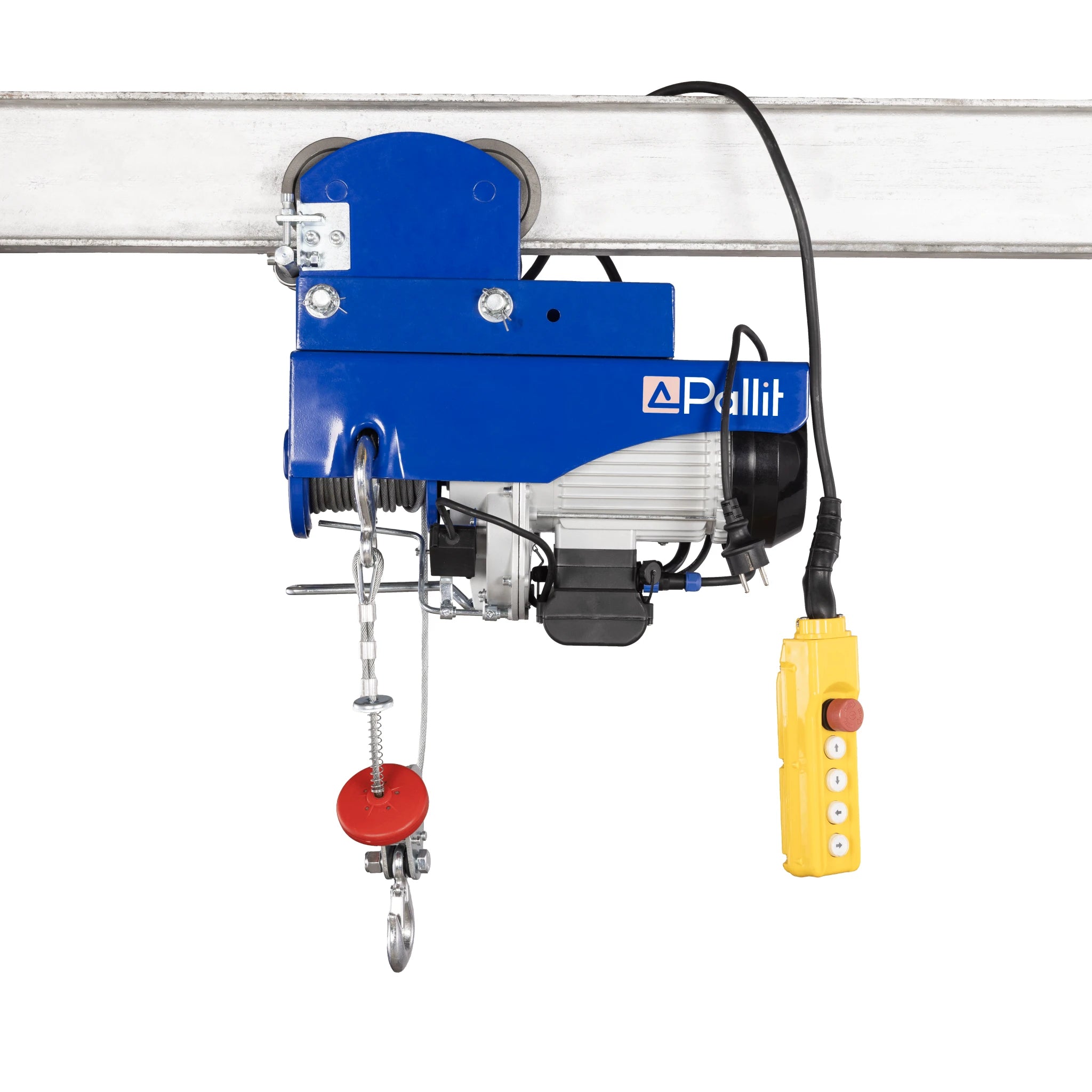

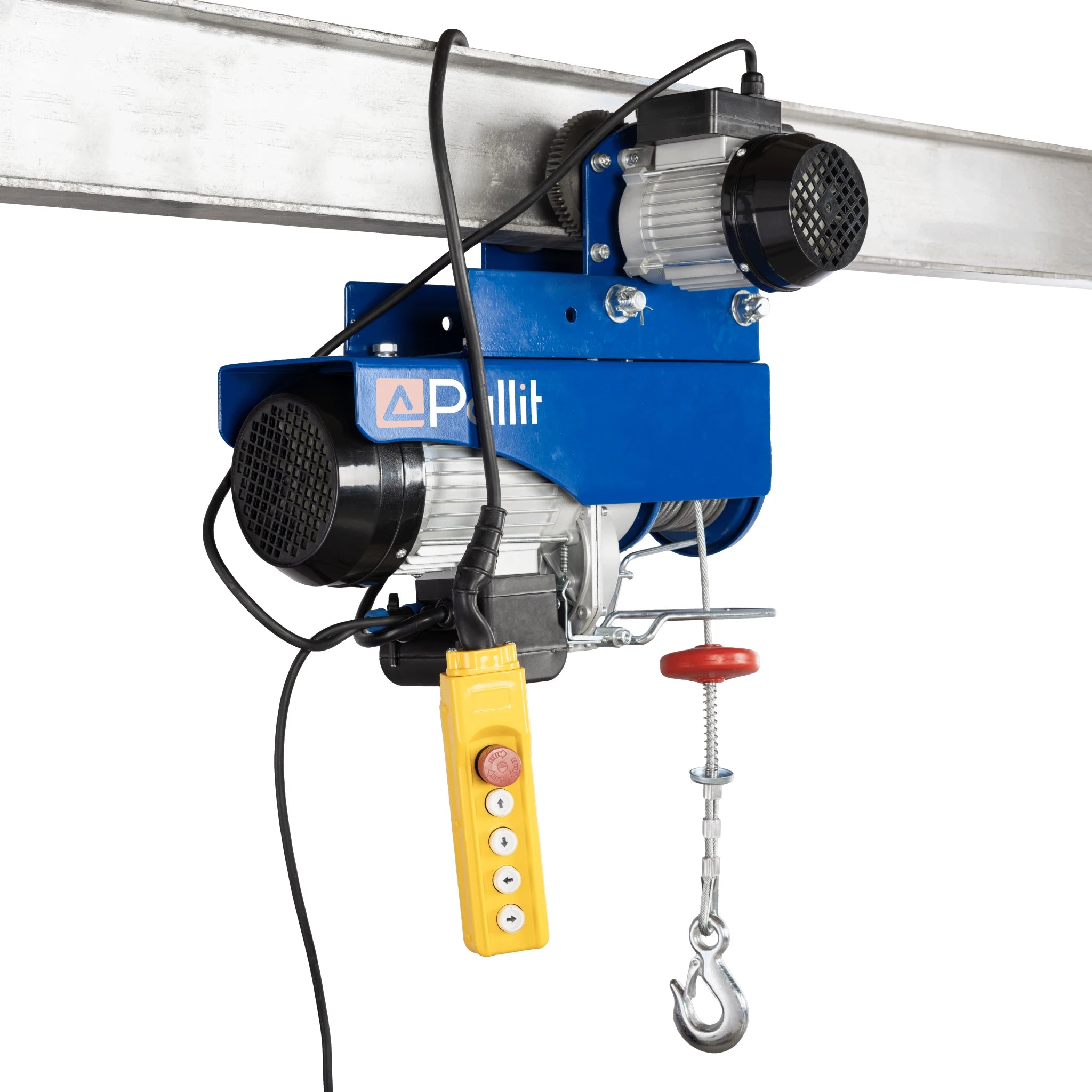

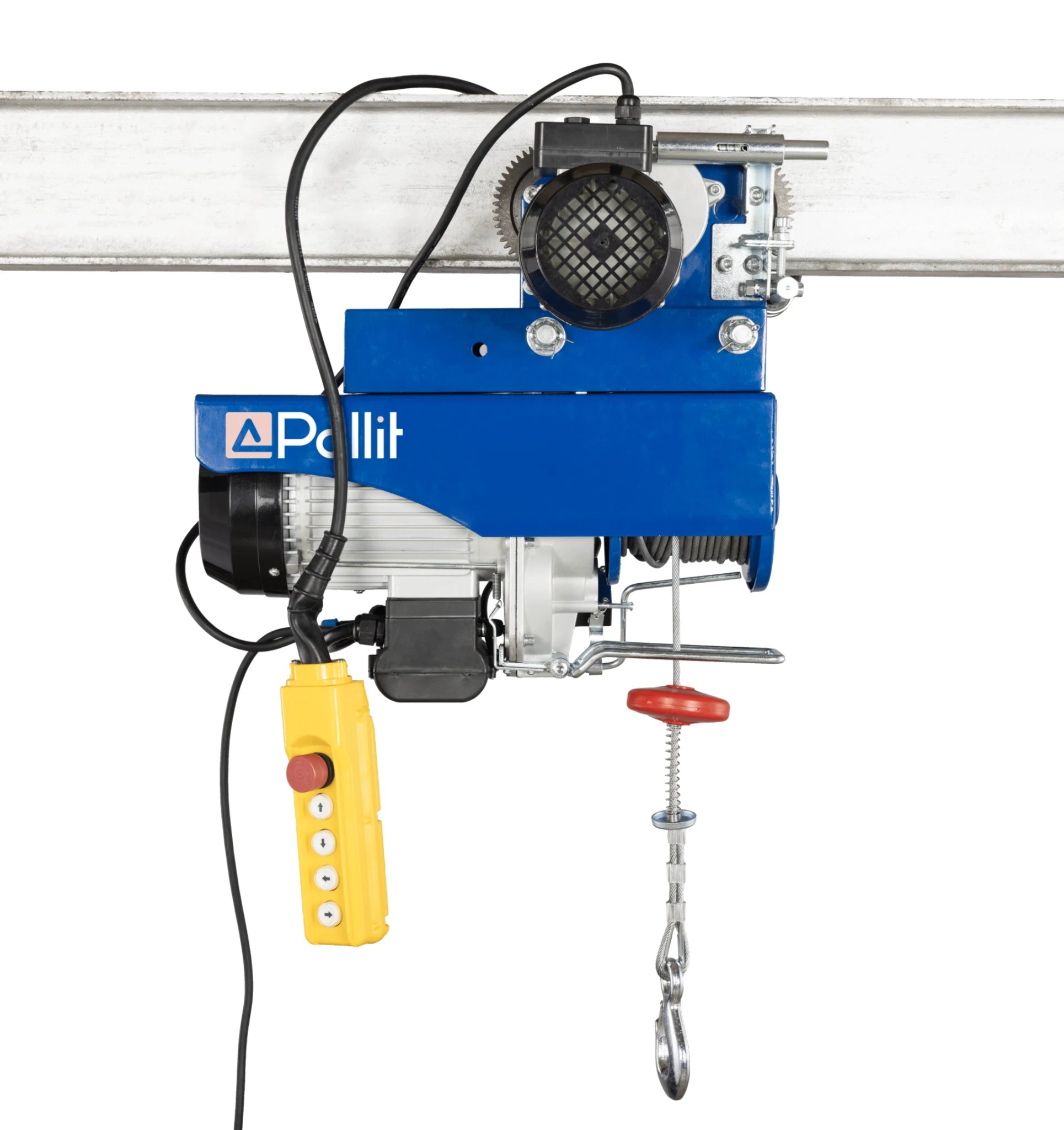

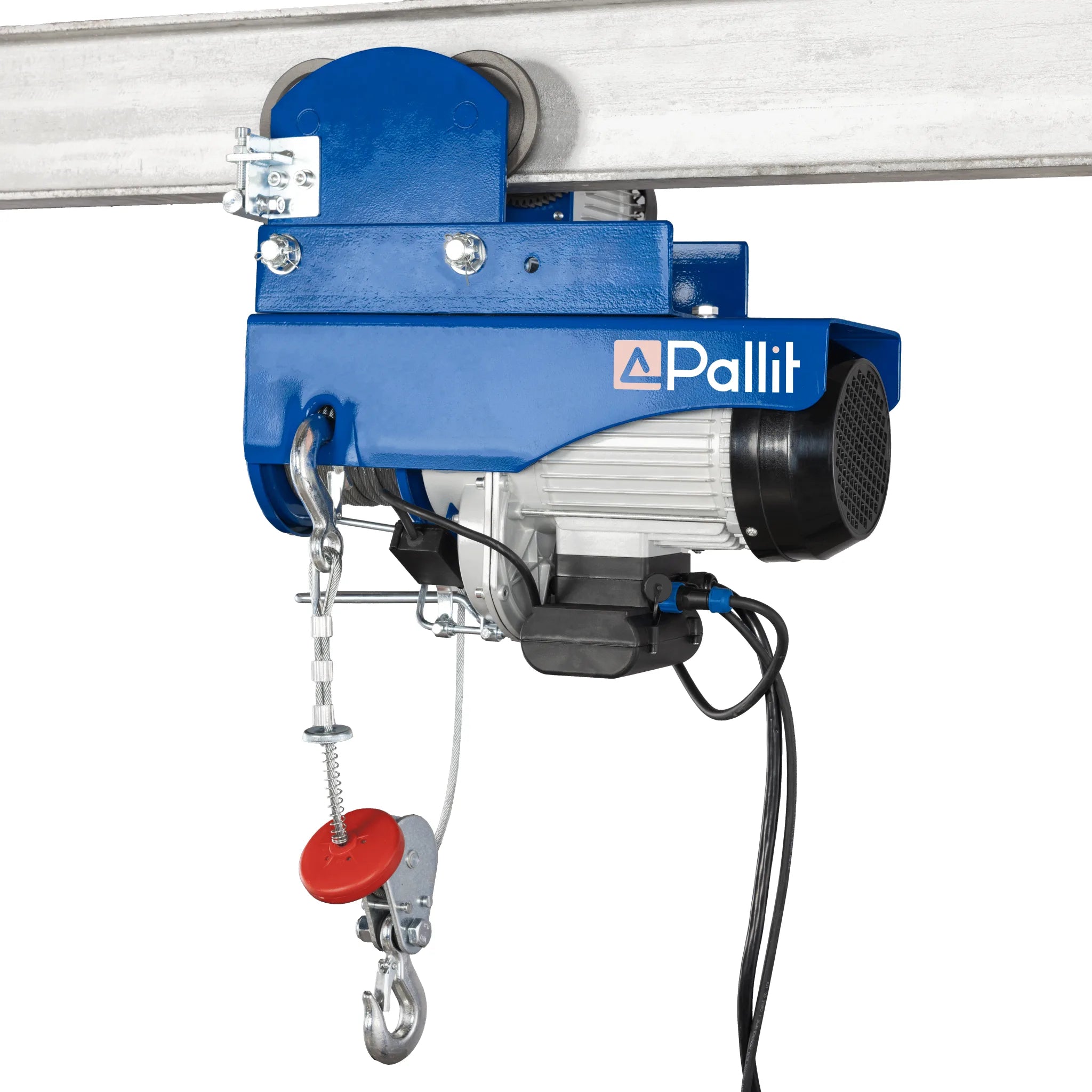

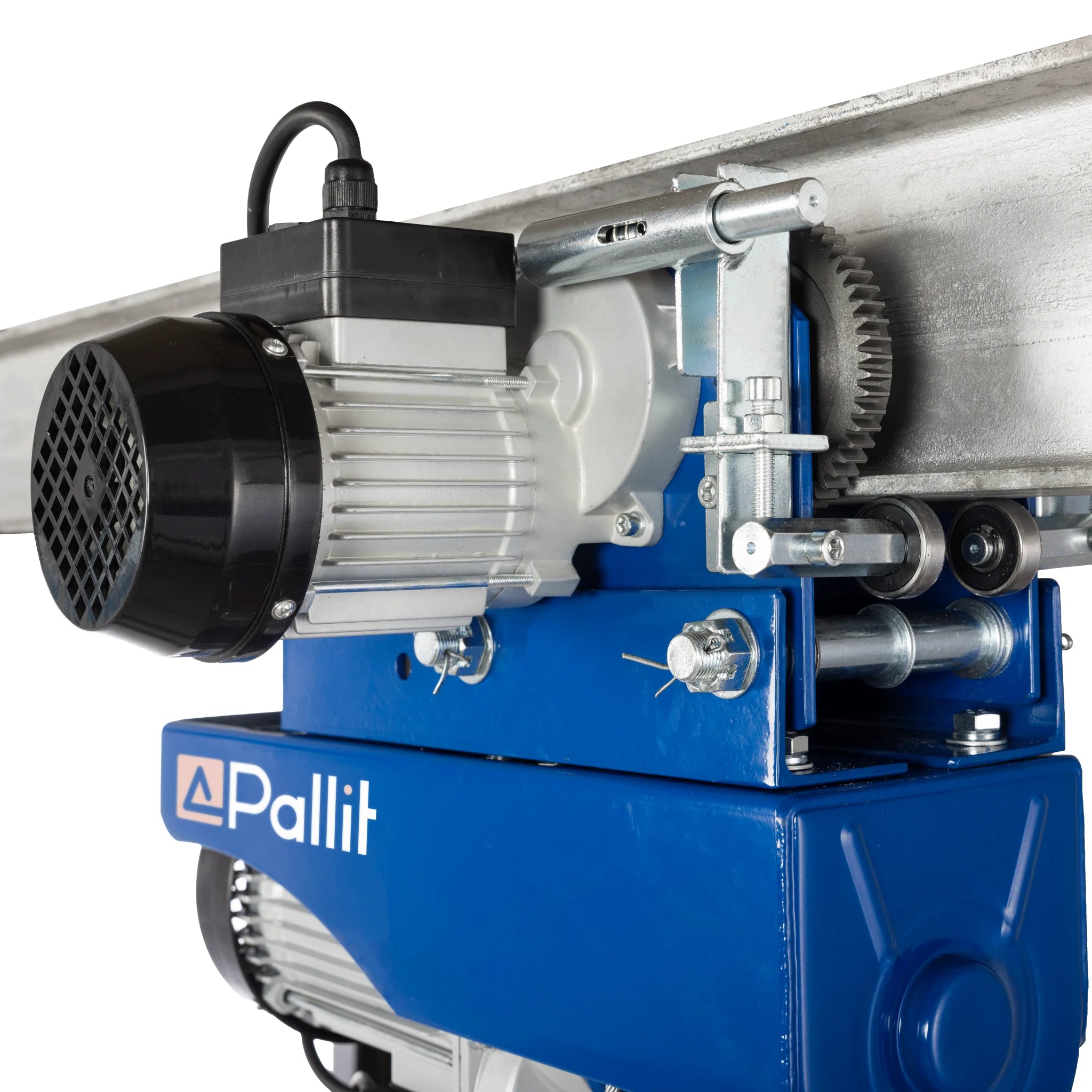

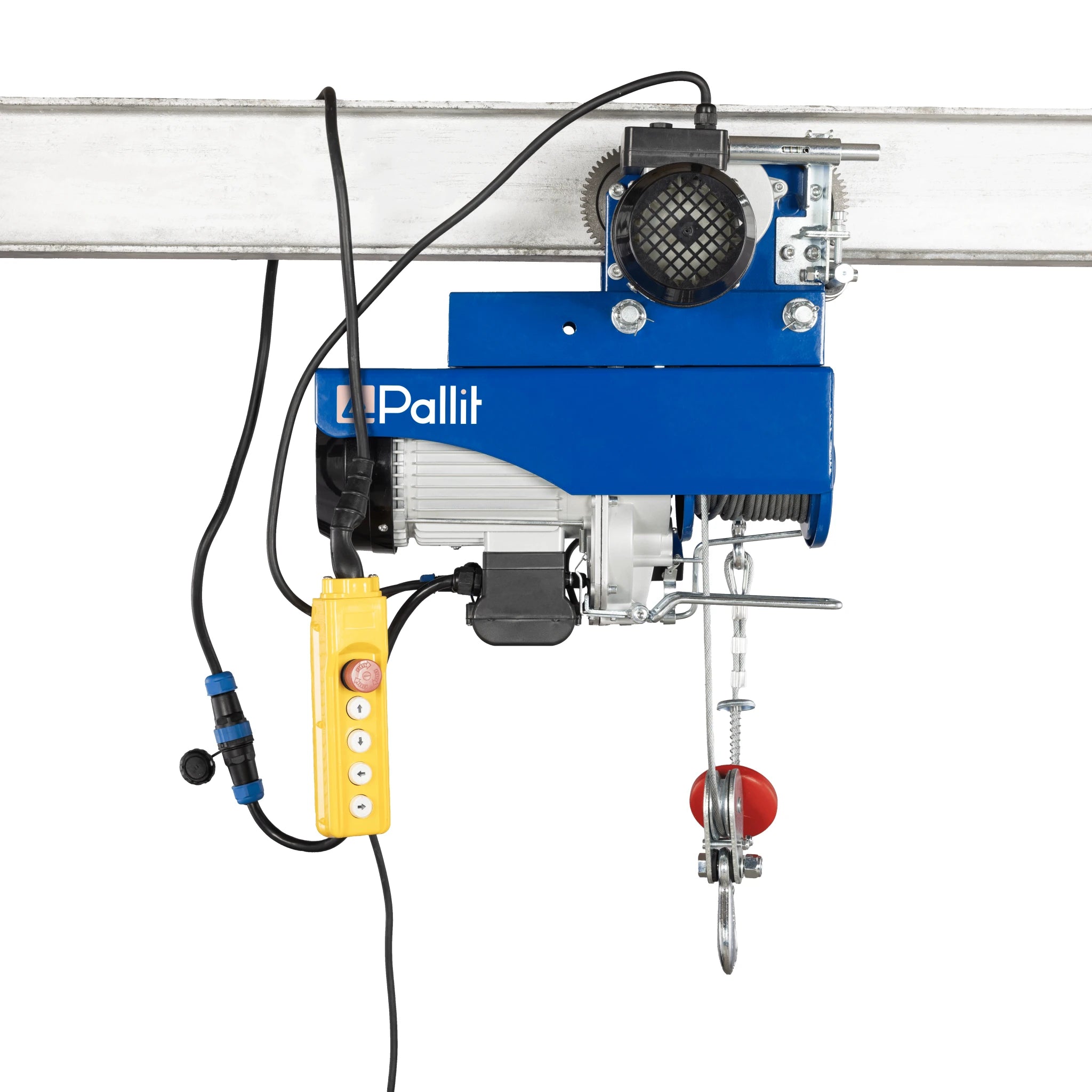

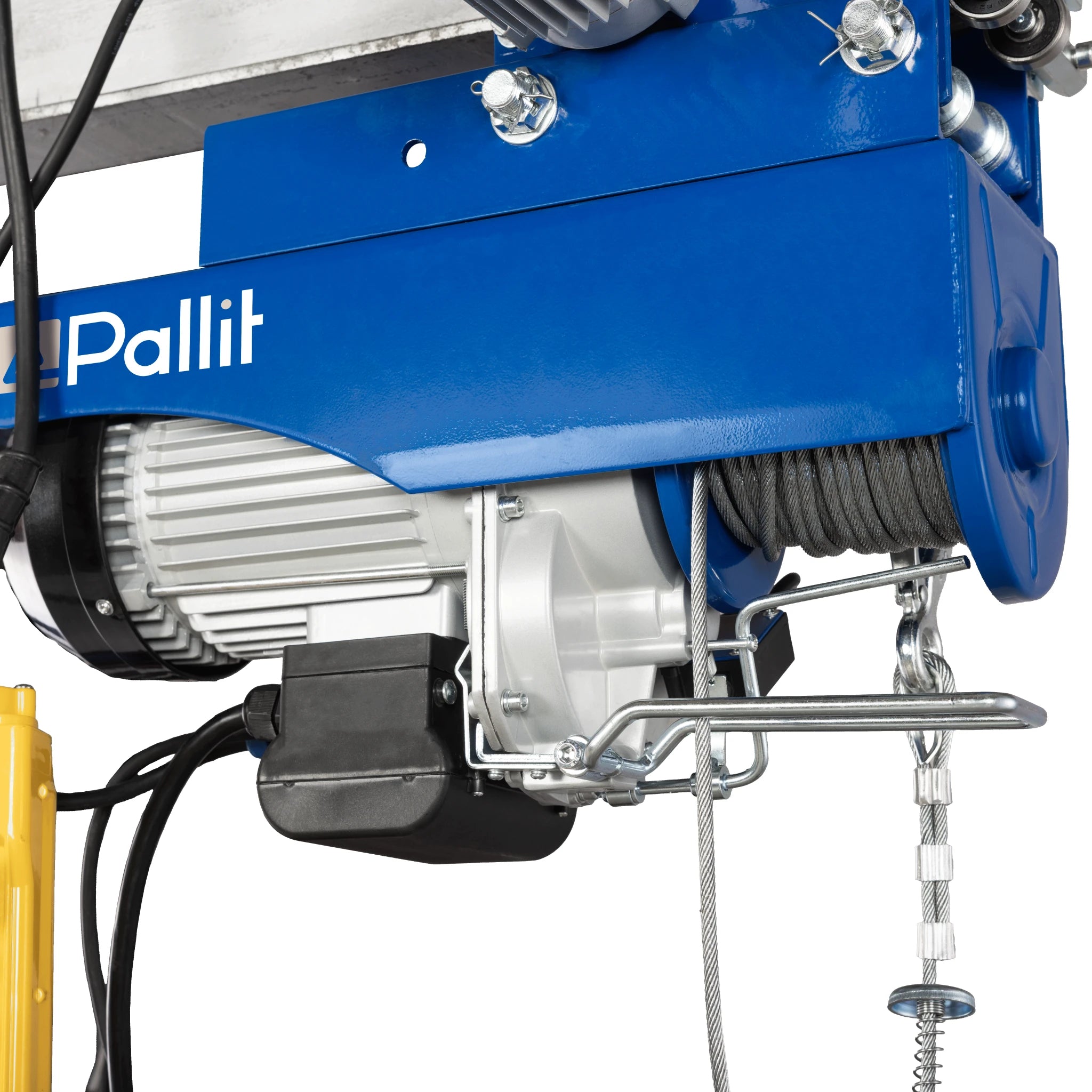

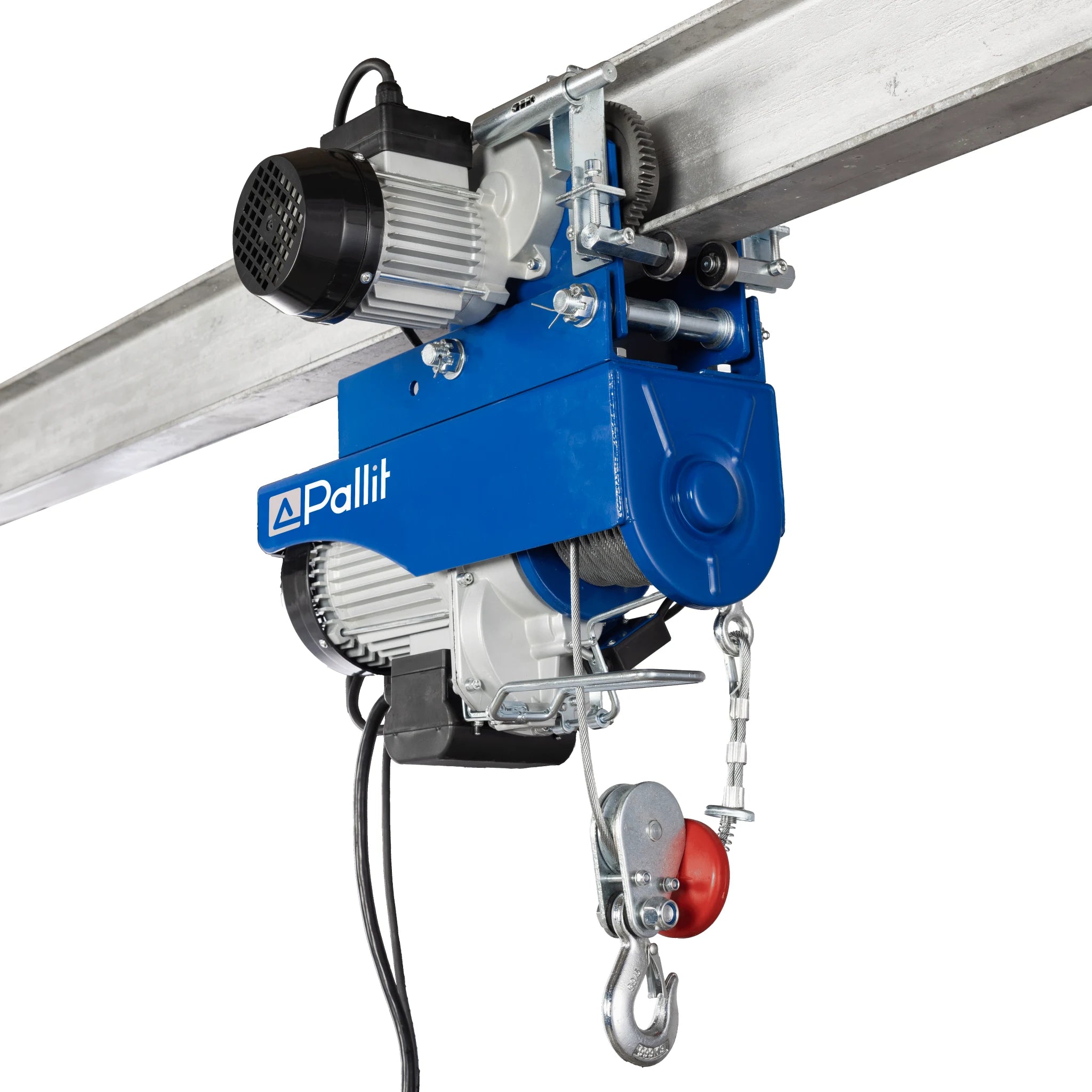

Electric Hoist with Beam Trolley COMBI

Name: Electric Hoist with Beam Trolley COMBI
Brand: Pallit
SKU: 10010490-0
Price: 451.01 EUR
Availability: InStock

454,80 € VAT included 379,00 €

SKU 10010490-0

The electric cable winch with integrated trolley is an optimal solution for versatile lifting work in warehouses, garages and workshops.

Lifting capacity: Lifts loads up to 1,000 kg (double hook)
Lifting height: 12 m (single hook) or 6 m (double hook)
Motor of the cable pull: Equipped with a 1600 W motor with overheating protection
Trolley motor: 180 W motor power
Travel speed: Maximum travel speed of the trolley at 16 m/min
Control: One remote control for cable winch and trolley, power connection required
Installation: Suitable for H-beams with a flange width of 68 - 110 mm

Technical data

General

Capacity

1000 kg

Capacity, double cable

1000 kg

Capacity, single cable

500 kg

Weight

50 kg

Sound level EN-12053

71 dB

Material

steel

Colour

Blue

Cable length

12 m

Wire cable diameter

6 mm

EN standard

EN14492-2

Seal

CE

IP protection type

IP54

Insulation class

1 | 2 | 4

Control cable length

1.5 m

Power cable length

0.65 m

Rated current

7.5 A

Thermal overload protection

Yes

Min. radius curve

1000 mm

SKU

10010490-0

Brand

Pallit

Lift

Lift motor power

1.6 kW

Lifting height, single cable

12 m

Lifting height, double cable

6 m

Lifting speed, single cable

8 m/min

Lifting speed, double cable

4 m/min

Drive

Drive motor power

180 kW

Delivery

delivery service

Delivered as

2 packages (partially assembled)

Links

Safety instructions

Product manual

Dimensions

Height

370 mm

h14/h4
Length

480 mm

l1
Minimum distance to mounting

800 mm

H1/H

Width

460 mm

b1
H-beam width

68 - 110 mm

B(t)
H-beam height, min.

100 mm

H(t)
